EJ-200/ BC-408/ Pilot F Quenching Data

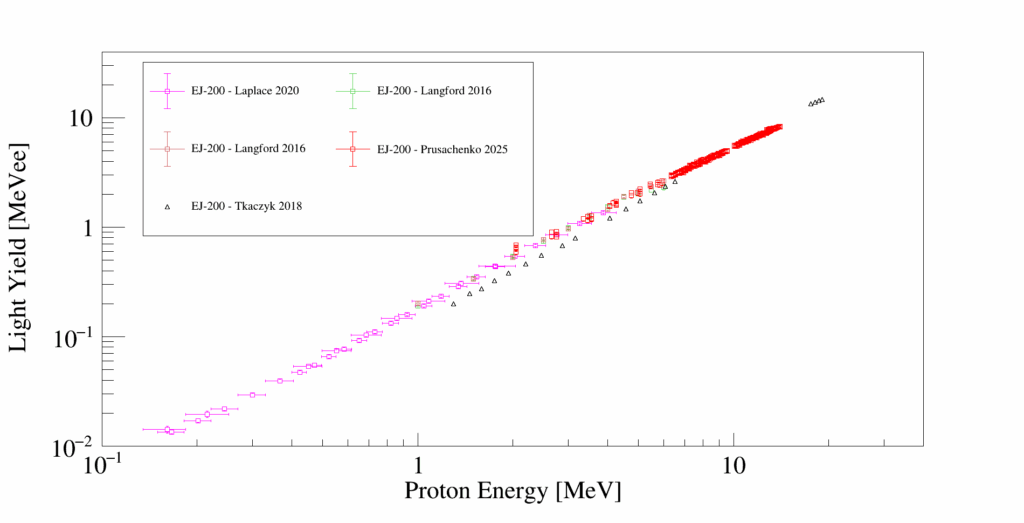

Additional quenching data are available at higher proton energies and for different recoil particles in the table below. Click the cells in the Reference column to view the paper from which the data is derived. The Data column will direct to a downloadable text file of the quenching data.

Data processing is still in progress, you will be able to find a complete documentation of the Reference Papers and values soon.

Reference Paper Scintillator Type MeasuredParticle Energy Range (MeV)
Low Bin
Energy Range (MeV)
High Bin
Data Text File
Langford2016JINST11Pilot F
EJ-200
BC-408
Proton0.22Click Here
Laplace2020NIMA954Pilot F
EJ-200
BC-408
Proton0.0643.86Click Here
Tran2018IEEETNS65Pilot F
EJ-200
BC-408
Electron 0.320.48Click Here
Nassalski2008IEEETNS55Pilot F
EJ-200
BC-408
Electron3.854.25Click Here
Payne2011IEEETNS58Pilot F
EJ-200
BC-408
Electron 0.00850.482
Swiderski2012JINST7Pilot F
EJ-200
BC-408
Electron2.622.92Click Here
Tkaczyk2018NIMA882Pilot F
EJ-200
BC-408
Proton and Electron1.319
